Specs

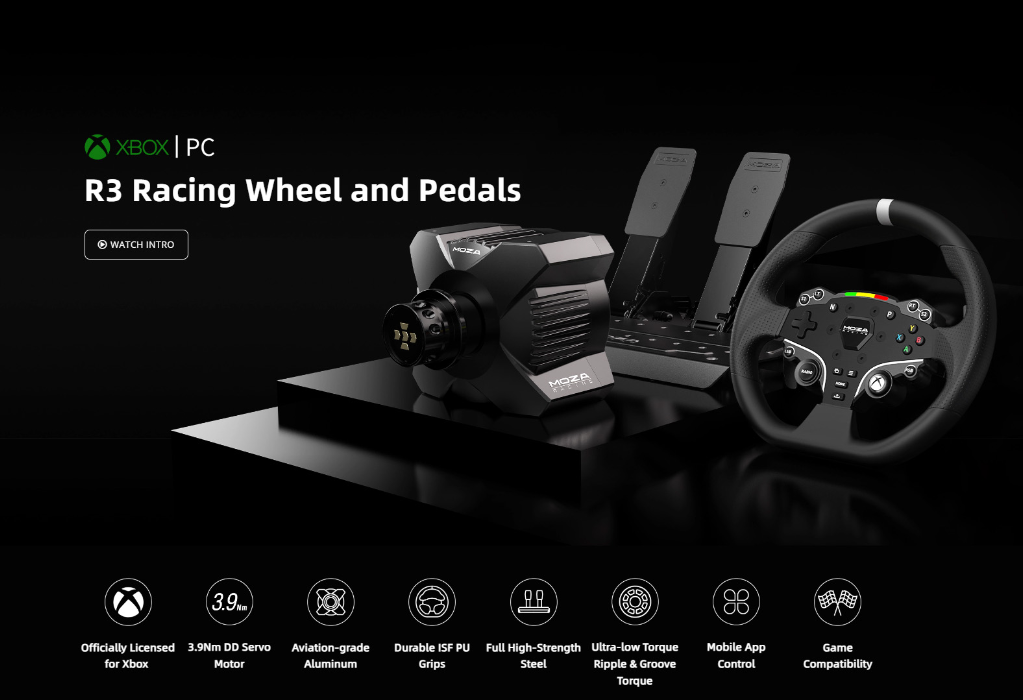

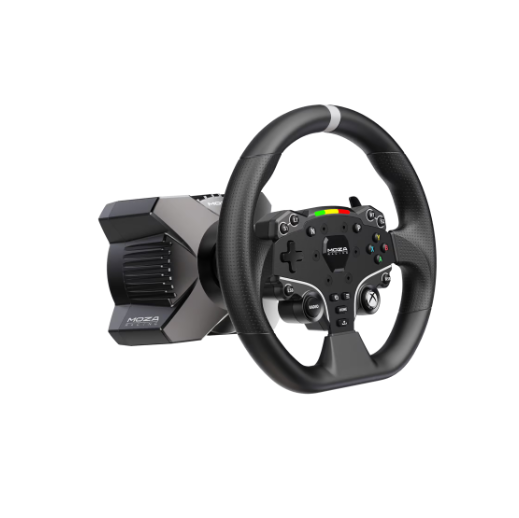

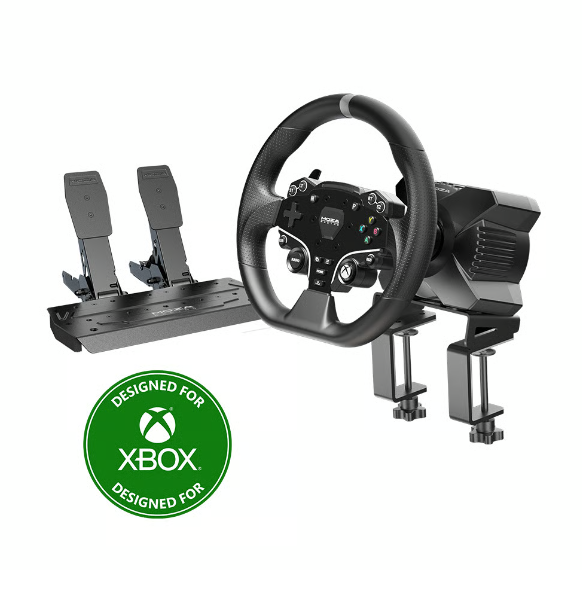

Product Specifications of R3 Base
Platform
PC & Xbox
Drive Type
Direct Drive
Max Wheel Rotation
Limitless
Housing Material
Aviation Grade Aluminum Alloy
Color
Black
Peak Torque
3.9 Nm
Rated Power
72W
Input Voltage
110V~220V AC —>12V DC
Encoder Resolution
15 bits
USB Refresh Rate
1000Hz
APP Functionality
Supported
Quick Release
Supported
Connection Ports
Power, DC Input, Pedal, USB, Dash
Accessories
Manual and Warranty Card, Power Supply, Data Cable, Toolkit
Mounting Method
4 holes on the bottom
Table Clamp
Included
Online Firmware Upgrade
Supported

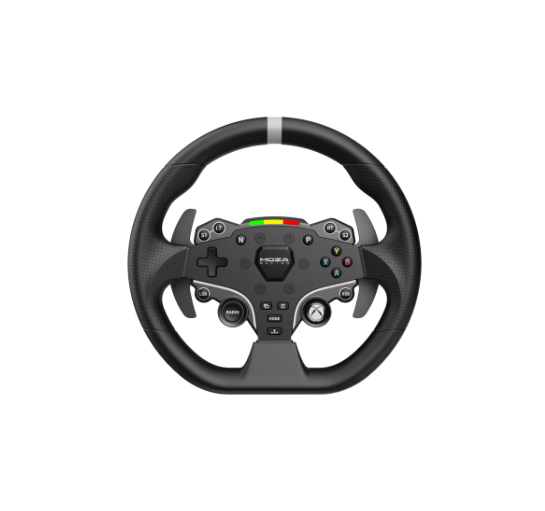

Product Specifications of ES Wheel
Grips
ISF PU
Face Plate Material
Aluminum Alloy
Shifter Paddle Material
Aluminum Alloy
Size
280mm
Buttons
22
RPM LED Light
10 High Brightness LED RGB Beads
Intelligent Telemetry
Supported
Fully Adjustable RPM LEDS through MOZA Pit House
Supported
Release Method
MOZA Quick Release

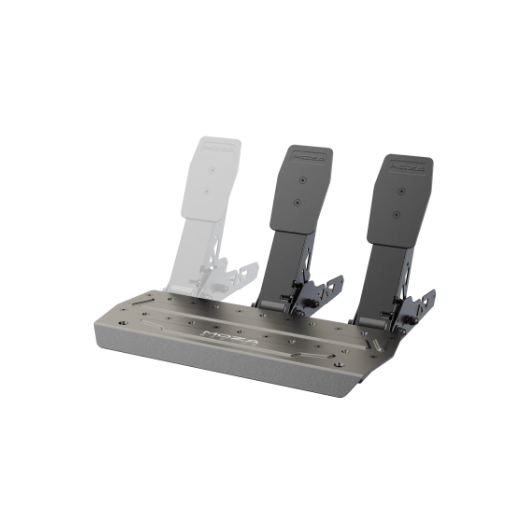

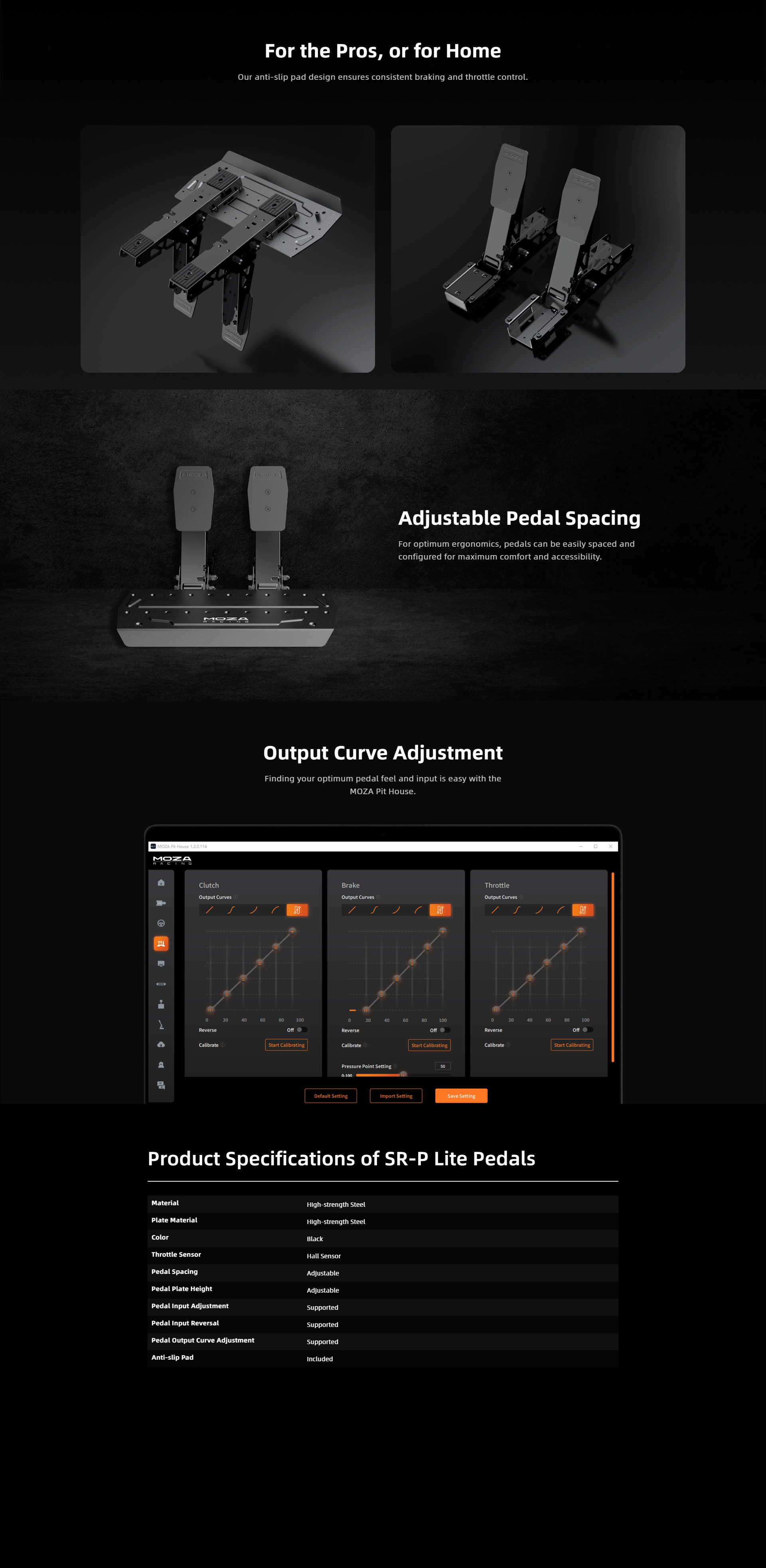

Product Specifications of SR-P Lite Pedals
Material
High-strength Steel
Plate Material
High-strength Steel
Color
Black
Throttle Sensor
Hall Sensor
Pedal Spacing
Adjustable
Pedal Plate Height
Adjustable
Pedal Input Adjustment
Supported
Pedal Input Reversal
Supported
Pedal Output Curve Adjustment
Supported
Anti-slip Pad
Included
Compatibility
| R3 | R5 | R9 V1 | R9 V2 | R12 | R16 | R21 | |
|---|---|---|---|---|---|---|---|
| Standalone ES Wheel | √ | √ | × | √ | √ | × | × |
| CS V1 | × | × | √ | √ | × | √ | √ |
| CS V2 | √ | √ | √ | √ | √ | √ | √ |
| RS V2 | √ | √ | √ | √ | √ | √ | √ |
| GS Alcantara V1 | × | × | √ | √ | × | √ | √ |
| GS Alcantara V2 | √ | √ | √ | √ | √ | √ | √ |
| GS Microfiber Leather V2 | √ | √ | √ | √ | √ | √ | √ |
| FSR Formula Wheel | √ | √ | √ | √ | √ | √ | √ |
| SR-P Lite Pedals | √ | √ | × | × | × | × | × |
| SR-P Pedals | 乄(Directly connect to PC via USB) | √ | √ | √ | √ | √ | √ |
| CRP Pedals | 乄(Directly connect to PC via USB) | √ | √ | √ | √ | √ | √ |
